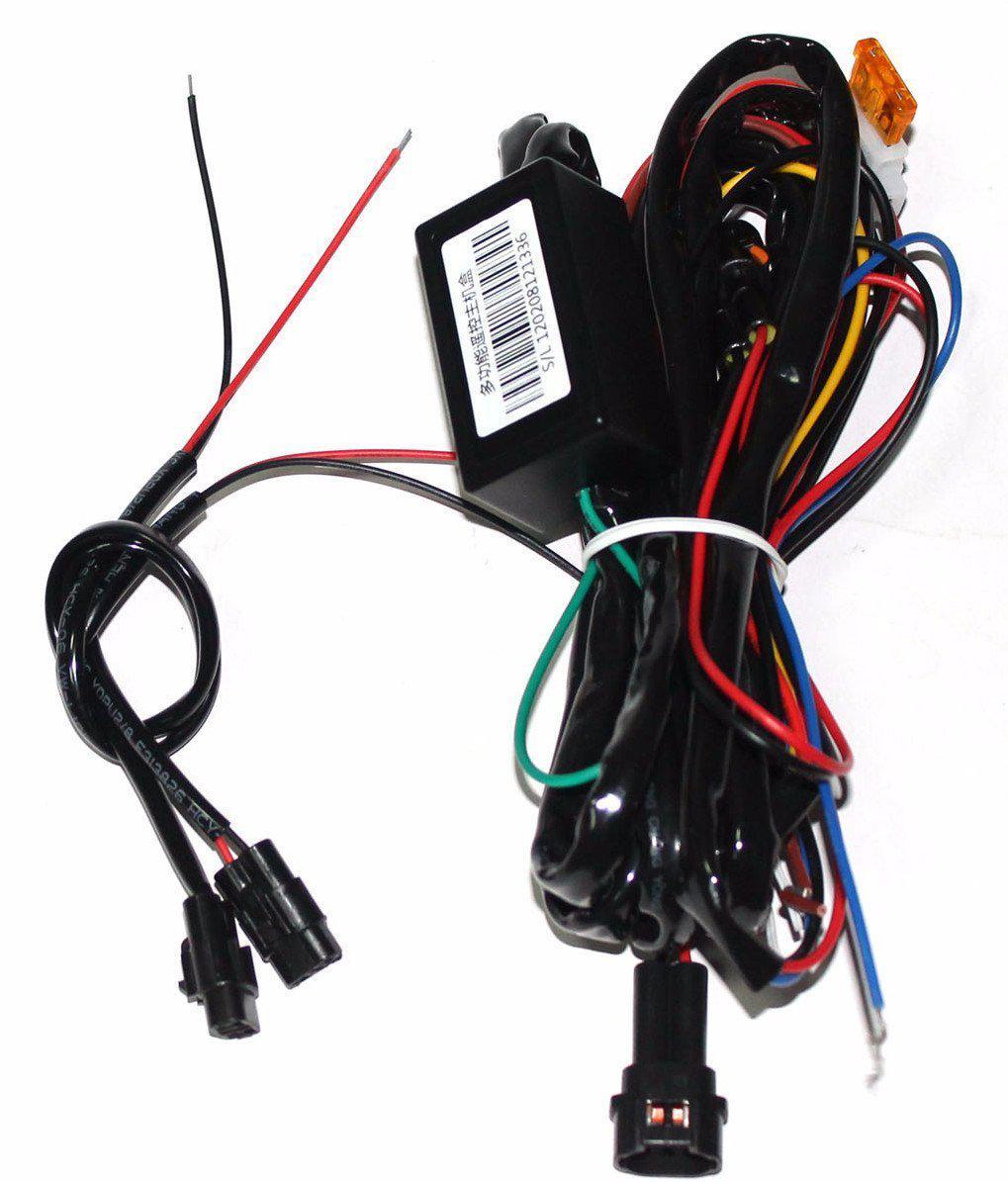

Universal Daytime Running Light DRL Harness w/ optional dimming and flashing wiring
- Works with any vehicle with 12 volt battery
- Easy wiring. Only two connection needed to make DRL work.

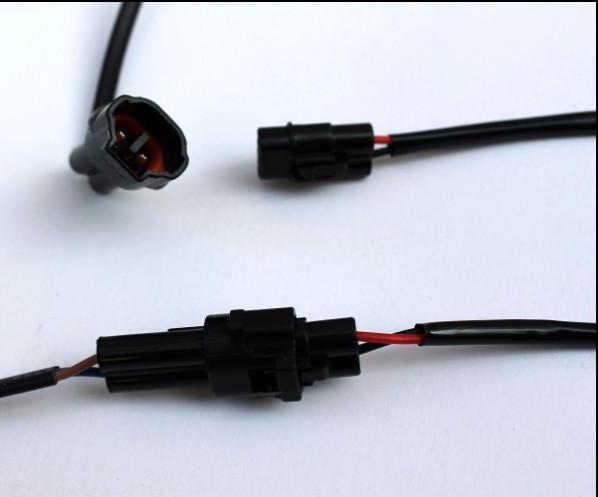

- Waterproof connectors.
- Auto turn on DRL when the car starts
- Turns off about 20 s after turning the car off
- Connect white wire to low beam or parking light positive to dim the DRL at night.
- Connect orange wire to horn positive to make the DRL flash when horning
- Connect yellow wire to ACC if the DRL cannot turn on or stay on
- Connect red wire to battery positive, black wire to battery negative
1) Working voltage: 12 V
